Open Luna
Semi-vertical Refrigerated Cabinet

The OPEN LUNA semi-vertical refrigerated display case is open on the customer side, making it a self-service refrigerated unit.
Combined with LUNA refrigerated display cases, it forms a perfect design and functional pair for modern retail environments.
It features cooling on both shelves and is ideal for supermarkets, grocery stores, and butcher shops.
Heated versions are commonly used in bakeries, while the cold version is also used for dairy products such as yogurt.
A wide range of colors and branding options is available.

Operating Conditions

• Operating temperature: 2°C / 10°C at an ambient temperature of 25°C and 60% relative humidity.

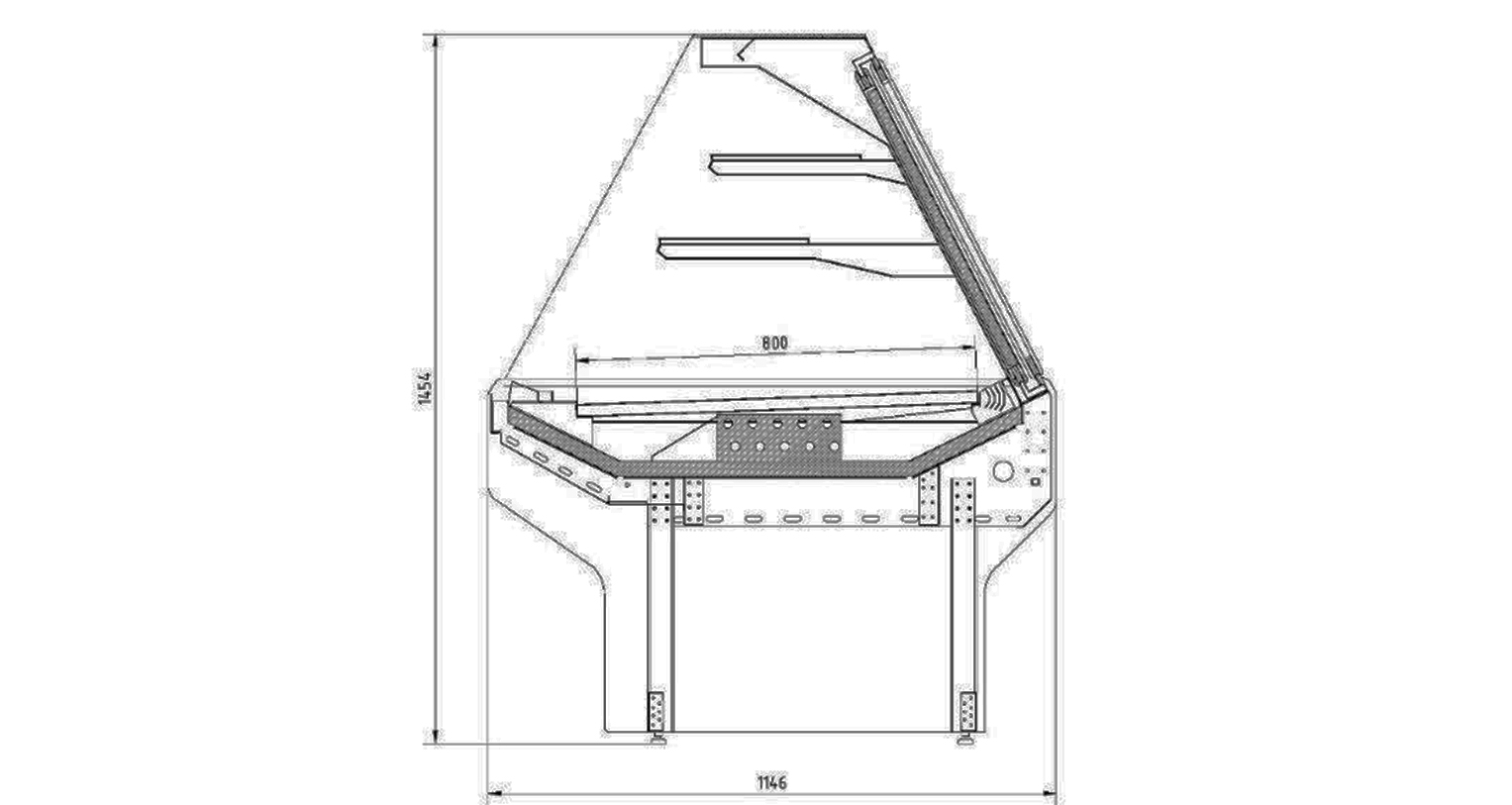

Dimensions & Construction

• Dimensions: (length) x 1146 x 1454 mm
• Standard lengths: 950, 1200, 1400, 1900, 2150, 2400, 2850 mm
• Depth: 1146 mm
• Height: 1454 mm
• Side panel thickness: 35 mm
• Display tray depth: 800 mm

Technical Features

• Closed interior with a perforated back panel ensures optimal air circulation.
• Evaporator is located beneath the display tray.
• Equipped with a LAE digital temperature controller.
• Operating voltage: 230V / 50Hz
• No front glass for easy self-service access.
• Lower mask made of black 999 ST2 particle board, rear in black coated sheet metal.
• Left and right closing sides in black, thickness 35 mm.
• Upper zone above display tray includes glass panels.
• LED lighting installed under each shelf along full length.
• Full system controller included.

Condenser Unit

• Self-cleaning condenser unit
• Equipped with bidirectional fans
• Modern energy-efficient design with low-power non-magnetic fans
• Quiet and stable operation
• Extended service life
• Up to 40% energy savings compared to traditional systems
